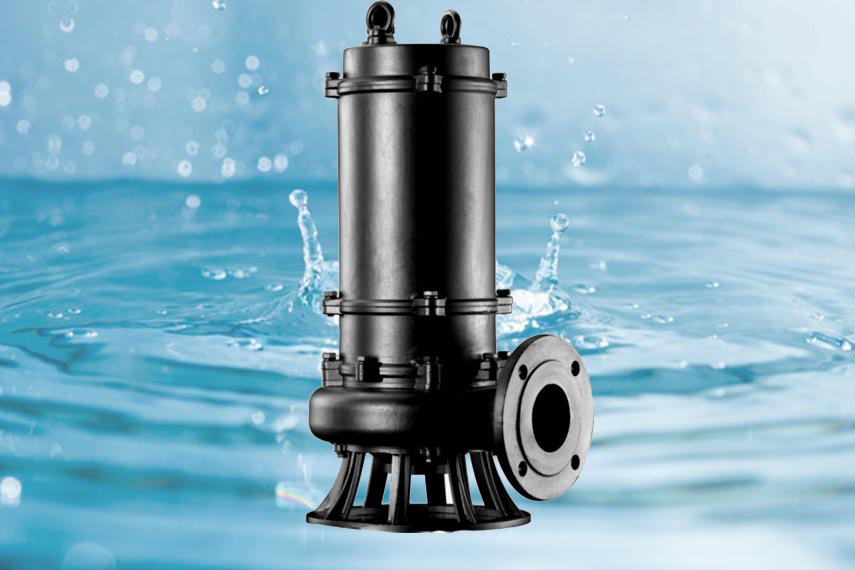

WQ Series - Heavy Duty Effluent Transfer Pump
WQ Series Heavy Duty Effluent Transfer Pumps are available in 2 pole as well as 4 pole motor. Low speed motor reduces the wear & tear of the impeller and also ensures continuous duty operations. This Product is most suitable for Municipal Waste Water Treatment and Common Effluent Treatment Plants (CETP) at Industrial Parks.
The Product caters to the needs of various Industries like Oil and Gas, Food and Beverages, Pharmaceutical, Environment and Energy, Waste Water Treatment, Bio Gas, Chemical Pulp and Paper, Mining, Minerals and Metals, Power Plants and Ship Building as well.
Performance Range
ITEM |
DESCRIPTION |
|
FLOW RANGE |
100 ~ 24000 LPM |
|
MAX. HEAD |
75 m |
|
LIMITS OF USE |
LIQUID TEMP(MAX). |
5 ~ 40°C |
TYPE |
FREQUENCY |
50/60Hz |
MOTOR |
2P (2850 RPM). DRY MOTOR |
|
INSULATION |
2HP ~ 150HP : CLASS F |
|
PROTECTION |
IP 68 |
|
BEARING |
BALL TYPE |
|
MECH. SEAL |
DUAL. MECHANICAL SEAL |
|
IMPELLER |
SEMI-OPEN |
|
