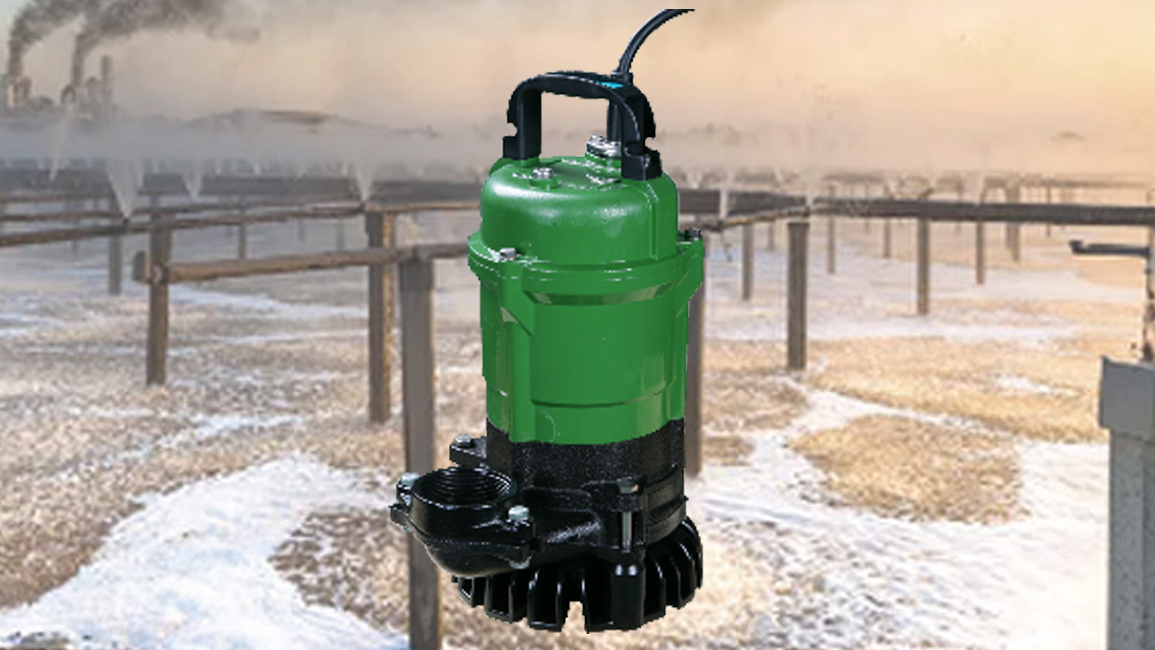

AHS Series - Light Weight Submersible Drainage Pump with Agitator
AHS Series Light Weight Submersible Drainage Pump with Agitator Is compact, easy to handle and transport. This makes the pump multi-purpose as it can be fitted with flexible pipes as per the requirement for different applications in Civil Engineering and Waste Water Treatment in Homes, Gardens, Agriculture and Industry.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | ||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | kg | |
| AHS-05 | 0.5 | 0.37 | 2" | 3A | 1.1A | 9.6 | 110 | 12 | 240 | 6 | 11.3 |
| AHS-10 | 1 | 0.75 | 2"(3") | 5.8A | 1.9A | 12 | 190 | 18 | 375 | 6 | 13.9 |
| AHS-20 | 2 | 1.5 | 2"(3") | 13A | 3.7A | 16 | 315 | 21.5 | 658 | 6 | 18.1 |
*All technical information is subject to change without notice.
