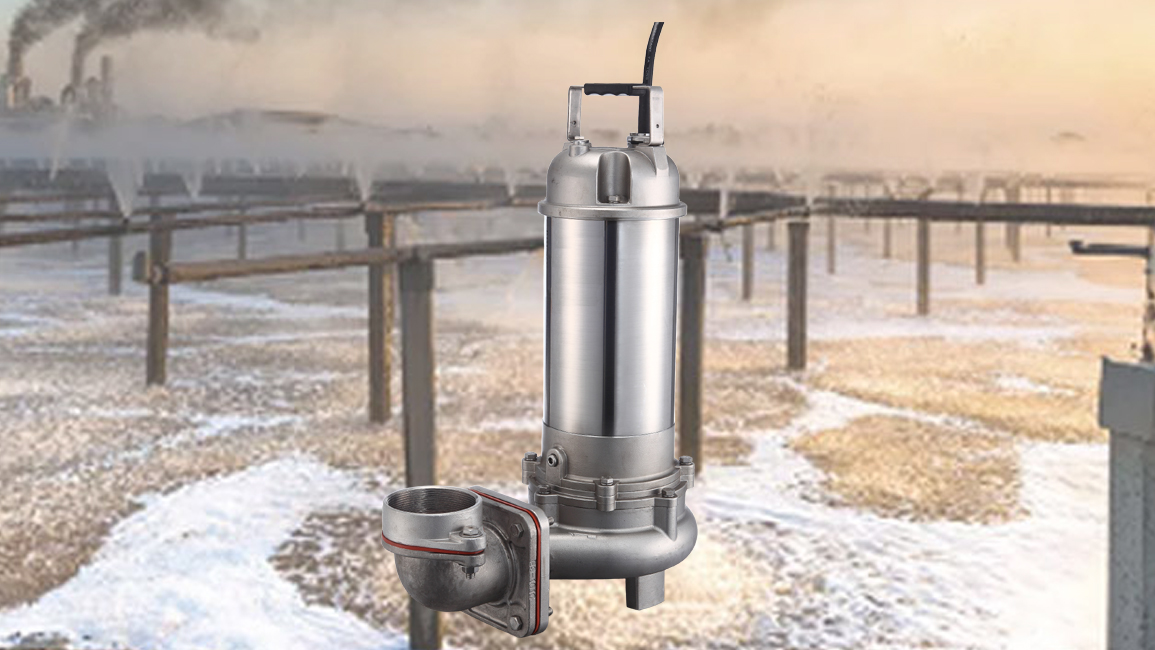

JSB Series - 316 Stainless Steel Submersible Vortex Sewage Pump
JSB Series 316 Stainless Steel Submersible Vortex Sewage Pump, has all wetted parts are made of 316 Stainless Steel to meet the demanding conditions of the applications. There would be less rusting and corrosion even after long periods of operation, this avoids secondary pollution and meets compliances of environmental requirements. Suitable for Heavy Duty, Industrial Effluent, Waste Water from Chemical Plant and Sea Water. It has Submersible Squirrel-cage Induction Motor with F class insulation and with motor protection Class IP68. The rotor and shaft are made of High Tensile Stainless Steel 410/420. Cable entry is designed with Anti-wicking Block at motor entry. Single Phase motor has thermal protection and Three phase motors are fitted with Overload protector. Top and bottom bearing are high quality Deep-groove C3 Type ball bearing. It has oil seal to give extra protection from the leakages of oil chamber.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | |||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | 1PH-kg | 3PH-kg | |
| 50JSB 5-05 | 0.5 | 0.37 | 2" | 3.4A | 1.4A | 5.4 | 200 | 9.5 | 398 | 35 | 13 | 12.4 |
| 50JSB 5-10 | 1 | 0.75 | 2" | 6A | 2.2A | 9 | 240 | 14.3 | 472 | 35 | 15.4 | 15.7 |
| 80JSB 5-20 | 2 | 1.5 | 2"(3") | 9.8A | 4.2A | 12 | 280 | 18.3 | 507 | 45 | 28.1 | 26.6 |
| 80JSB 5-30 | 3 | 2.2 | 2"(3") | - | 5.7A | 14.7 | 360 | 22.1 | 690 | 45 | - | 28.2 |
| 100JSB 5-50 | 5 | 3.7 | 3"(4") | - | 7.5A | 13.2 | 560 | 23.3 | 1010 | 45 | - | 341.3 |
| 100JSB 5-75 | 7.5 | 5.5 | 3"(4") | - | 11.4A | 18.7 | 600 | 28.8 | 1110 | 45 | - | 47.2 |
*All technical information is subject to change without notice.
