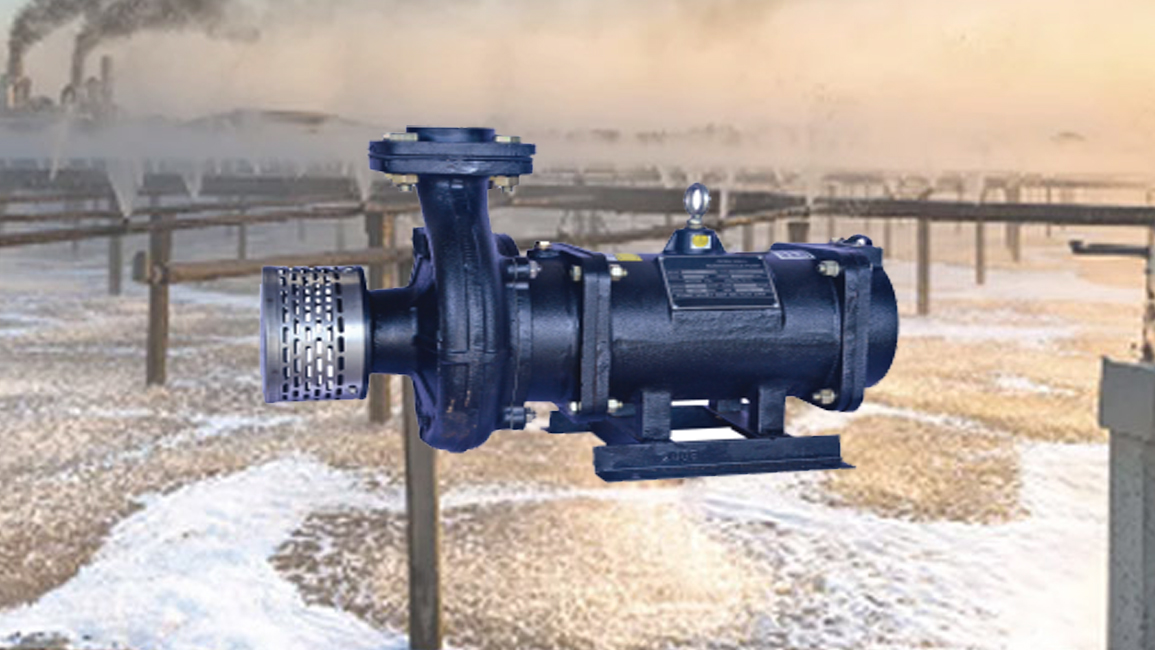

THO Series- Horizontal Openwell Submersible Pump

THO Series Horizontal Openwell Submersible Pump is used for rural and urban drinking water supply. This pump is used in High rise building for water supply. It is also used in Sprinkler Irrigation System for watering Lawns and gardens and for Drip Irrigation. Also used in Decorative fountains and waterfalls.

(2 Pole, 3000 RPM Syn. Speed)

MODEL	MOTOR			Pipe Size Delivery mm	Remark	TOTAL HEAD IN METERS
MODEL	kW	HP	PH	(mm)	remark	6	9	10.5	12	13.5	15	19.5	21	24	25.5	27	28.5	30	33	36	39	42	45	48	51	54	57	60	63	66	69	72	75	78
THO 50-27	2.2	3.0	'1/3"	50								590	550	500	390	320	250
THO 65-21	2.2	3.0	'1/3"	65				830	800	765	720	580	480	360
THO 50-36	3.7	5.0	3	50						890	850	810	750	730	600	580	520	490	475	375	200
THO 65-29	3.7	5.0	3	65					840	820	800	750	720	680	570	510	400	240
THO 100-18	3.7	5.0	3	100		1500	1350	1270	1160	1080	940	450
THO 50-55	5.5	7.5	3	50																660	615	570	530	470	425	350	275	200
THO 75-33	5.5	7.5	3	75									1250	1200	1075	975	900	800	700	400
THO 100 - 24	5.5	7.5	3	100				1750	1650	1575	1475	1325	1200	1100	550
THO 75 - 39	7.5	10	3	75														1100	1050	900	700	400
THO 100 - 28	7.5	10	3	100					2000	1950	1900	1800	1725	1650	1475	1400	1250	850
THO 65-48	9.3	12.5	3	65															1200	1175	1125	1060	950	810	650	480
THO 100 - 33	9.3	12.5	3	100									2150	2100	1925	1850	1800	1700	1600	1300
THO 50 - 75	11	15	3	50																					540	520	500	480	460	440	420	380	340	280
THO 65 - 51	13	17.5	3	65														1425	1400	1340	1280	1170	1050	900	500
THO 65 - 60	15	20	3	65																	1425	1375	1325	1260	1200	1150	1075	950	825
THO 65 - 72	18.5	25	3	65																			1525	1475	1375	1300	1200	1075	975	850	675	575
THO 75 - 51	18.5	25	3	75																2100	1975	1850	1750	1650	1525	1400
THO 65 - 78	22	30	3	65																			1650	1650	1550	1475	1380	1300	1200	1080	970	850	700	500

(2 Pole, 3000 RPM Syn. Speed)

Model	Motor			Pipe Size Delivery mm	Remark	Total Head in Meters / Discharge LPM
Model	kW	HP	PH	Pipe Size Delivery mm	Remark	9	12	15	18	21	24	27	30	32	35	38
THO 25 - 20	0.37	0.5	'1/3	25	SS Body	130	115	90	65	40
THO 25 - 20	0.75	1.0	'1/3	25				180	170	166	135	100	80
THO 25 - 38	1.1	1.5	'1/3	25				160	158	150	140	130	110	100	85	50
THO 40 - 30	1.1	1.5	'1/3	40			300	280	258	235	215	178	140	70
THO 40 - 32	1.5	2	'1/3	40			350	330	310	285	260	230	200	140	95

Single Phase	0.5 to 3.0HP
Three Phase	1 to 30HP
No. of Stages	1
Head	6 to 85 mtrs
Discharge	Discharge 100 to 2100 lpm
