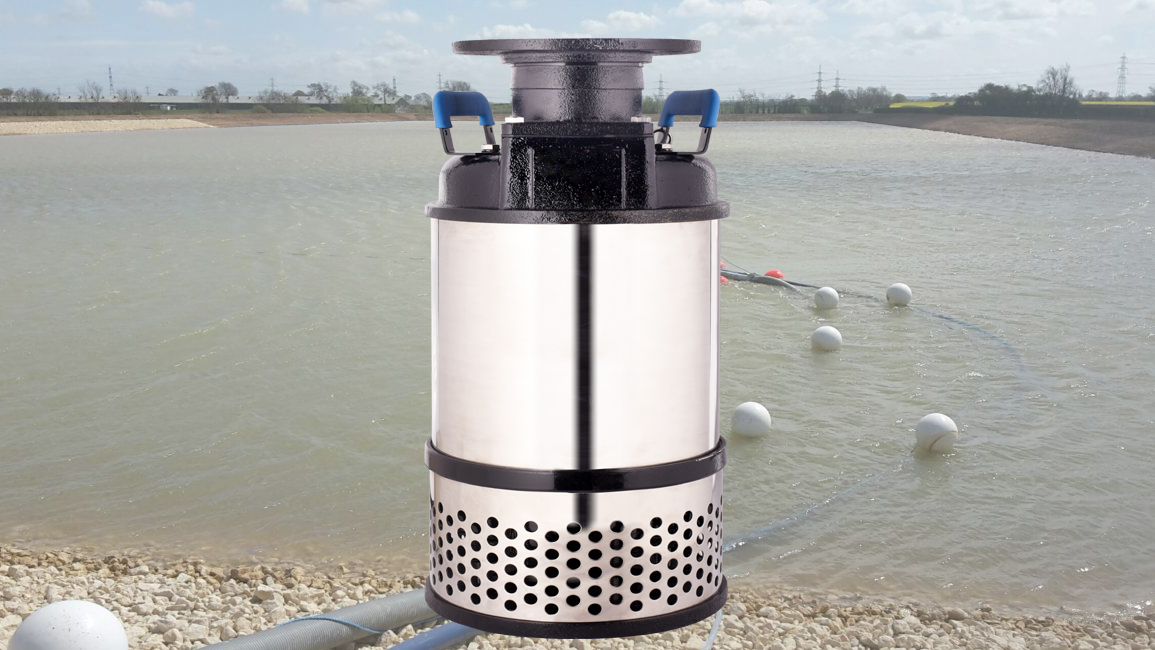

JDW Series - Submersible Dewatering Pump
JDW Series is a Submersible Dewatering Pump with high efficiency. Impeller made of Chromium-Nickel to stand against corrosion. Suitable for landscape and horticulture, extraction from Rivers, Lakes and Reservoirs, Agriculture and Aquiculture.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | |||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | 1PH-kg | 3PH-kg | |
| 80JDW 5- 20 | 2 | 1.5 | 3" | 11A | 3.8A | 9.5 | 500 | 16.4 | 820 | 10 | 45.2 | 44.2 |
| 80JDW 5- 30 | 3 | 2.2 | 3" | 15A | 5.7A | 14.5 | 500 | 26.5 | 980 | 10 | 46.6 | 45.6 |
| 100JDW 5-30 | 3 | 2.2 | 4" | 15A | 5.7A | 9.5 | 800 | 17 | 1200 | 10 | 46.6 | 45.6 |
| 80JDW 5-50 | 5 | 3.7 | 3" | - | 7.9A | 21.5 | 400 | 32.4 | 1040 | 10 | - | 48.2 |
| 100JDW 5-50 | 5 | 3.7 | 4" | - | 7.9A | 12.5 | 1000 | 22 | 1680 | 10 | - | 48.2 |
*All technical information is subject to change without notice.
