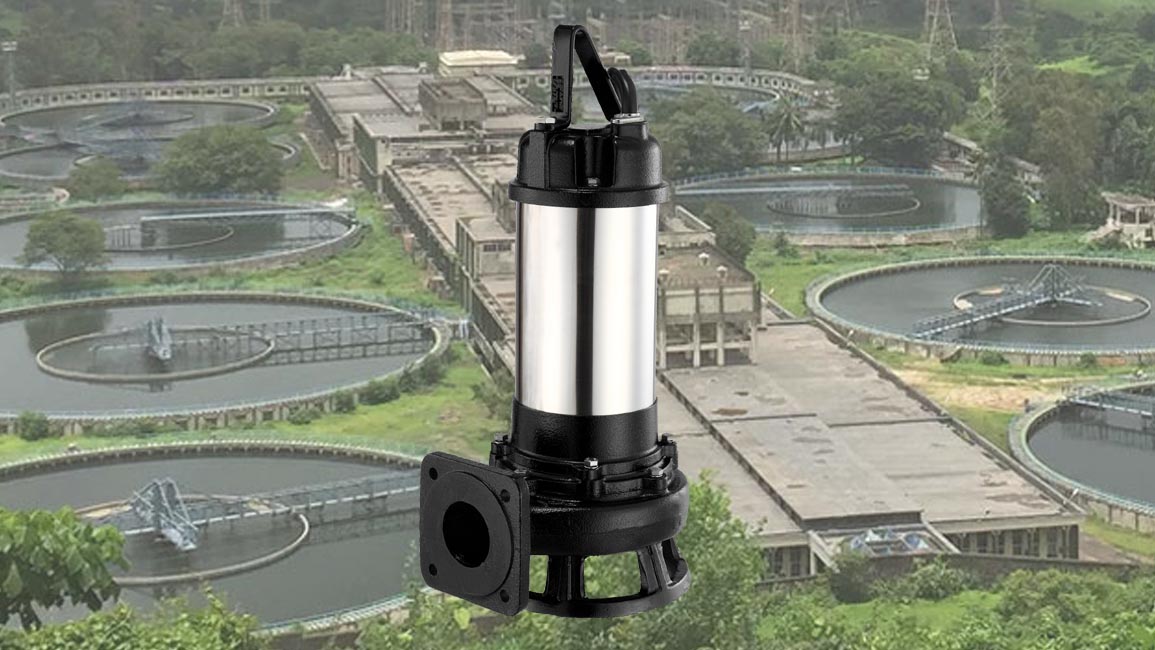

JDSK Series - Submersible Cutter Pump
JDSK Series is Submersible Cutter Pump is suitable for Drainage of Sewage with oversize fibrous material from Building, School, Basement, Septic Tank and Cesspit, Waste water treatment, Hotel and Kitchen Waste water etc. It has Submersible Squirrel-cage Induction Motor with F class insulation and with motor protection Class IP68. The rotor and shaft are made of High Tensile Stainless Steel 410/420. Cable entry is designed with Anti-wicking Block at motor entry. Single Phase motor has thermal protection and Three phase motors are fitted with Overload protector. Top and bottom bearing are high quality Deep-groove C3 Type ball bearing. It has oil seal to give extra protection from the leakages of oil chamber.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | |||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | 1PH-kg | 3PH-kg | |
| 50JDSK 5-05 | 0.5 | 0.37 | 2" | 4A | 1.2A | 6 | 150 | 9.5 | 300 | 19 | 12.8 | 12.5 |
| 50JDSK 5-10 | 1 | 0.75 | 2" | 6A | 1.8A | 8 | 190 | 11 | 430 | 19 | 18.5 | 18.2 |
| 50(80)JDS 5-20 | 2 | 1.5 | 2"(3") | 11.8A | 3.6A | 10 | 430 | 19 | 650 | 45 | 34 | 33.9 |
| 80JDSK 5-20 | 2 | 1.5 | 2"(3") | 11.3A | 3.5A | 10 | 360 | 15.5 | 700 | 23 | 35.8 | 335.7 |
| 80JDSK 5-30 | 3 | 2.2 | 2"(3") | - | 5.2A | 11 | 440 | 18.5 | 800 | 23 | - | 36.2 |
| 100JDSK 5-50 | 5 | 3.7 | 3"(4") | - | 8.6A | 8 | 690 | 22.5 | 950 | 28 | - | 52.2 |
| 100JDSK 5-75 | 7.5 | 5.5 | 3"(4") | - | 12A | 12 | 750 | 26.5 | 1100 | 28 | - | 59.2 |
*Alltechnical information is subject to change without notice.
