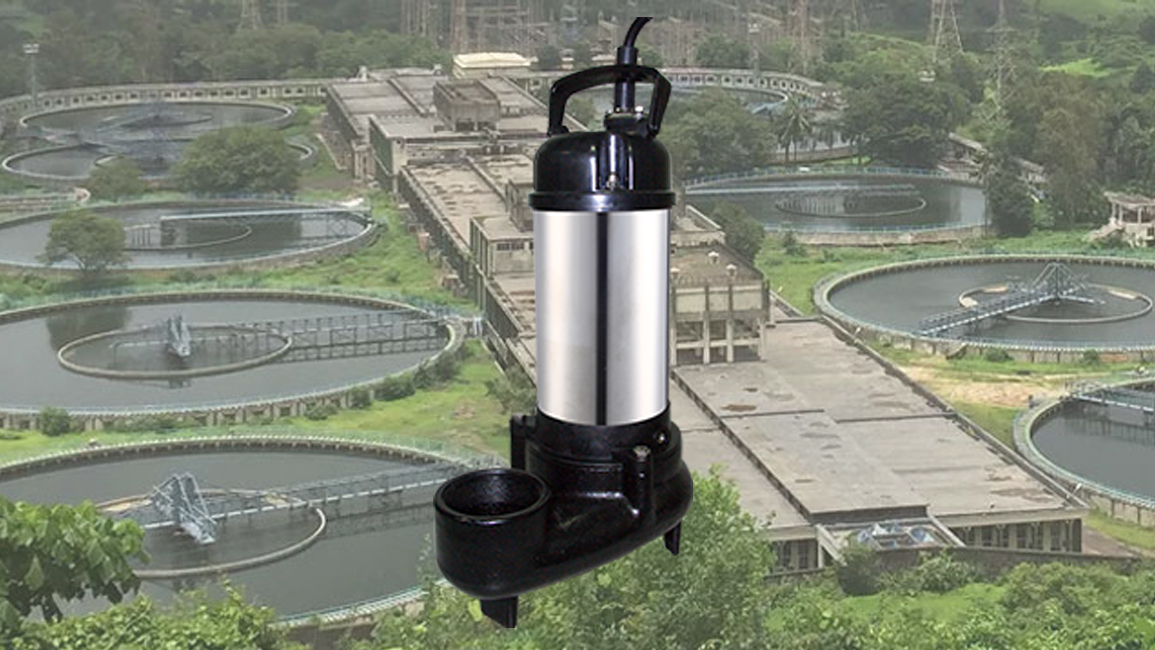

JSV Series - Submersible Vortex Sewage Pump
JSV Series is Submersible Vortex Sewage Pump is suitable for pumping sewage from Industrial Area, Domestic Waste Water, Hotel and Hospital Waste Water. Pump is connected with W/Quest Float Switch. We can also offer W/Verticle Float Switch. These Pumps are fitted with Glass Fibre ABS Impellers.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | ||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | kg | |
| JSV-100 | 0.125 | 100 | 1" | 1.2A | - | 4 | 50 | 7 | 60 | 4 | 4.45 |
| JSV-150 | 0.2 | 150 | 1.5"(2") | 1.6A | - | 4.5 | 115 | 7 | 180 | 24 | 6.2(6.5) |
| JSV-150AG | 0.2 | 150 | 1.5"(2") | 1.6A | - | 4.5 | 115 | 7 | 180 | 24 | 6.7(7.0) |
| JSV-150AM | 0.2 | 150 | 1.5"(2") | 1.6A | - | 4.5 | 115 | 7 | 180 | 24 | 6.7(7.0) |
| JSV-250 | 0.3 | 250 | 1.5"(2") | 2A | - | 5 | 130 | 8 | 230 | 25 | 6.6(6.9) |
| JSV-250AG | 0.3 | 250 | 1.5"(2") | 2A | - | 5 | 130 | 8 | 230 | 25 | 7.1(7.4) |
| JSV-250AM | 0.3 | 250 | 1.5"(2") | 2A | - | 5 | 130 | 8 | 230 | 25 | 7.1(7.4) |
*A.Quest float switch; AG/AM Vertical float switch are optional.
