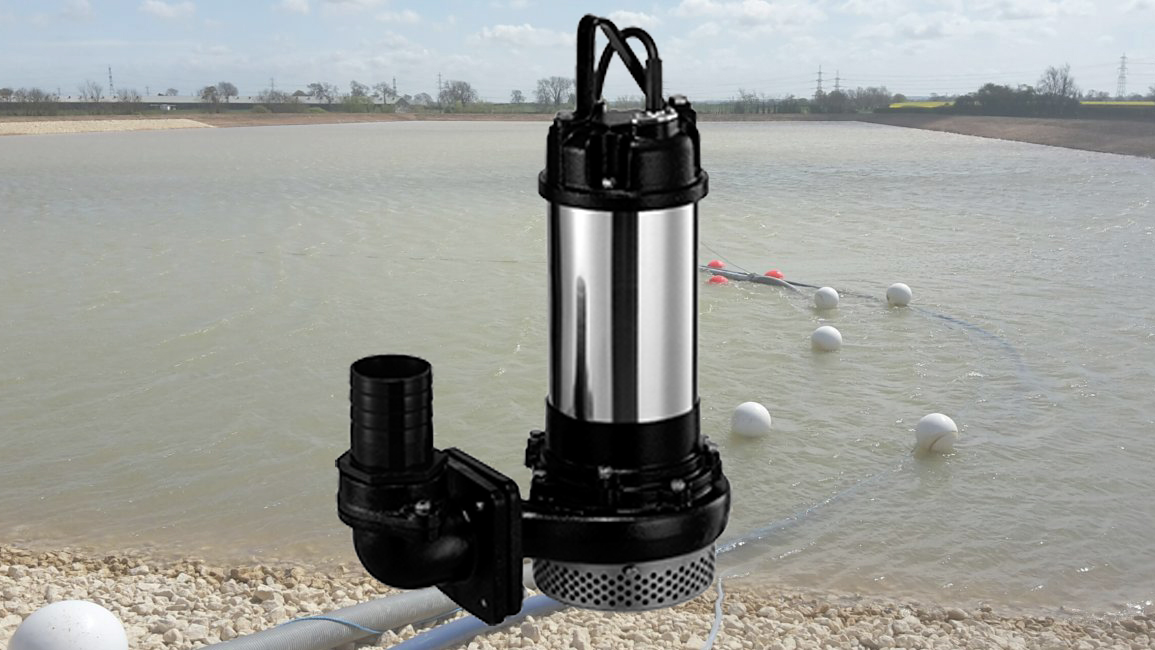

JKS Series - Submersible Effluent Pump
JKS Series is Submersible Effluent Pump which is fitted with higher efficiency Semi-open impeller Suitable for pumping waste water in light duty, particularly suitable for basement drainage, residential and accumulated water drainage. It has Submersible Squirrel-cage Induction Motor with F class insulation and with motor protection Class IP68. The rotor and shaft are made of High Tensile Stainless Steel 410/420. Cable entry is designed with Anti-wicking Block at motor entry. Single Phase motor has thermal protection and Three phase motors are fitted with Overload protector. Top and bottom bearing are high quality Deep-groove C3 Type ball bearing. It has oil seal to give extra protection from the leakages of oil chamber.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | |||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | 1PH-kg | 3PH-kg | |
| 50JKS 5-05 | 0.5 | 0.37 | 2" | 4A | 1.2A | 6 | 150 | 9.5 | 310 | 5 | 11.7 | 11.4 |
| 50JKS 5-10 | 1 | 0.75 | 2" | 6A | 2A | 8 | 150 | 11 | 450 | 5 | 18.5 | 18.2 |
| 50(80)JKS 5-20 | 2 | 1.5 | 2"(3") | 2"(3") | 3.5A | 10 | 360 | 15.5 | 680 | 5.5 | 35 | 34.9 |
| 50(80) JKS 5-30 | 3 | 2.2 | 2"(3") | - | 5.2A | 11 | 450 | 18.5 | 800 | 5.5 | - | 35.4 |
| 80(100)JKS 5-50 | 5 | 3.7 | 3"(4") | - | 8.6A | 8 | 700 | 22.5 | 950 | 5.5 | - | 53.2 |
| 80(100)JKS 5-75 | 7.5 | 5.5 | 3"(4") | - | 12A | 12 | 750 | 26.5 | 1100 | 5.5 | - | 59.2 |
*All technical information is subject to change without notice.
