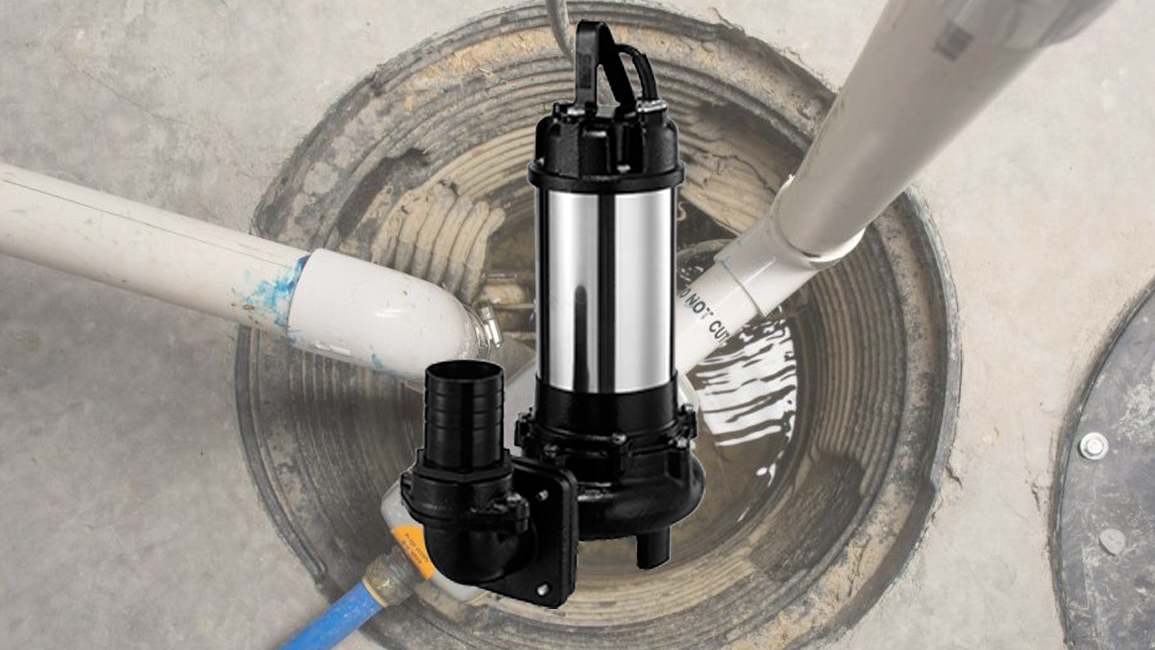

JKD Series Submersible Dredging Pump
JKD Series is Submersible Dredging Pump which is suitable for Dredging Light Sludge from Building Basement, Hotel, Factory, Septic Tank and Cesspits Water. The Pump is fitted with Vortex Impeller and Agitator to prevent Clogging of the pump. It has Submersible Squirrel-cage Induction Motor with F class insulation and with motor protection Class IP68. The rotor and shaft are made of High Tensile Stainless Steel 410/420. Cable entry is designed with Anti-wicking Block at motor entry. Single Phase motor has thermal protection and Three phase motors are fitted with Overload protector. Top and bottom bearing are high quality Deep-groove C3 Type ball bearing. It has oil seal to give extra protection from the leakages of oil chamber.
| TYPE | OUTPUT | DISCHARGE | FLA | RATED | MAXIMUM | FREE PASSAGE | WEIGHT (w/o Cable) | |||||
| HP | kW | Inch | 1PH-230V | 3PH-400V | Head m | Cap. LPM | Head m | Cap. LPM | mm | 1PH-kg | 3PH-kg | |
| 50JKD 5-05 | 0.5 | 0.37 | 2" | 4A | 1.2A | 6 | 150 | 8 | 320 | 10 | 12.9 | 12.6 |
| 50JKD 5-10 | 1 | 0.75 | 2" | 6A | 2A | 9 | 200 | 12.5 | 460 | 10 | 17.7 | 17.4 |
| 80JKD 5-20 | 2 | 1.5 | 2"(3") | 11.3A | 3.5A | 10 | 350 | 17.5 | 650 | 15 | 34.2 | 34.1 |
| 80JKD 5-30 | 3 | 2.2 | 2"(3") | - | 5.2A | 11 | 450 | 19.5 | 750 | 15 | - | 34.6 |
| 100JKD 5-50 | 5 | 3.7 | 3"(4") | - | 8.6A | 10 | 800 | 23.5 | 1200 | 12.5 | - | 53.6 |
| 100JKD 5-75 | 7.5 | 5.5 | 3"(4") | - | 12A | 12 | 1040 | 29.5 | 1400 | 12.5 | - | 59.6 |
*All technical information is subject to change without notice.
