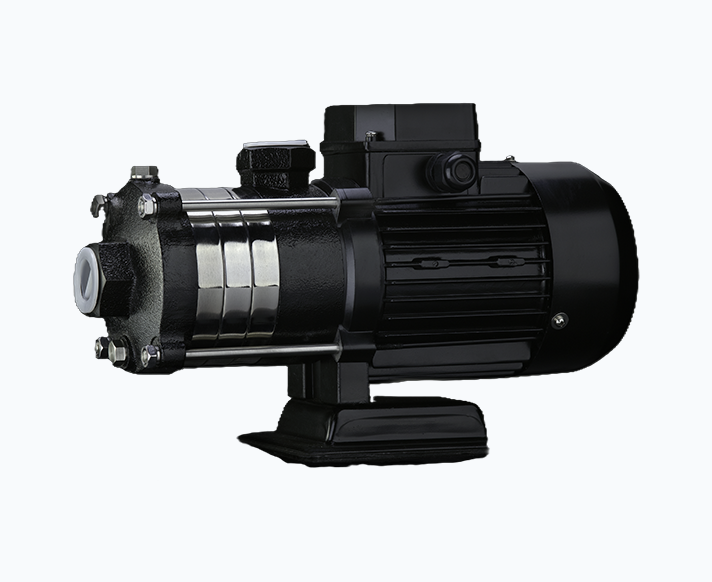

TCFT Series Horizontal Multistage Stainless Steel Centrifugal Pumps

The TC, TCF, and TCFT Series are horizontal multistage non-self-priming centrifugal pumps designed for pressure boosting, liquid circulation, and industrial water handling applications. Their multistage hydraulic construction ensures efficient pressure generation with smooth and stable flow performance.

The pumps feature a compact horizontal design with axial inlet and radial outlet configuration, allowing space-saving installation and efficient hydraulic operation. Stainless steel construction enhances corrosion resistance and operational durability in industrial and water treatment environments.

Equipped with fully enclosed air-blast two-pole motors, the series delivers dependable continuous-duty operation with IP55 protection and Class F insulation for reliable performance under demanding operating conditions.

Features

  • Horizontal multistage non-self-priming centrifugal pump design
  • Compact structure with axial inlet and radial outlet configuration
  • Stainless steel construction for corrosion resistance and long service life
  • Fully enclosed air-blast two-pole motor with IP55 protection
  • Class F insulation for reliable continuous-duty operation
  • Available in single-phase and three-phase configurations

Applications

  • Air-conditioning, cooling, and industrial circulation systems
  • Industrial cleaning and water purification applications
  • Aquaculture and fertilizing/metering systems
  • Environmental and industrial liquid transfer applications
  • Suitable for specialized high-pressure water handling systems

Performance Range

Flow Range 0.5 ~ 28.0 m3/hr
Delivery Head Range Max 60.0 mtr
Liquid Temperature -15°C ~ +70°C (Normal Temperature Type)
Hot Water Temperature -15°C ~ +110°C
Ambient Temperature Up to +40°C
Maximum Operating Pressure 10 bar
Motor Type Fully Enclosed Air-Blast Two-Pole Motor
Frequency 50 Hz
Protection Class IP55
Voltage 1 × 220-240V / 3 × 220-240V / 380-415V
Maximum Single-Phase Motor Power 2.4 kW
Pump Type Horizontal Multistage Stainless Steel Centrifugal Pump
