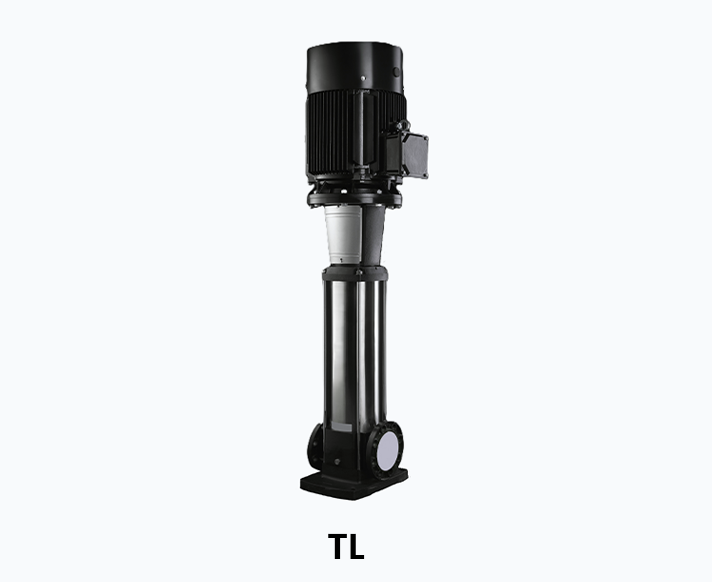

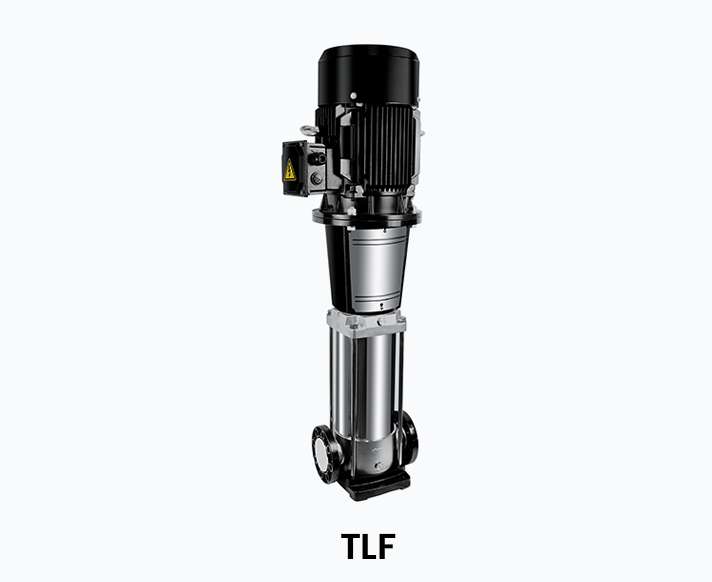

TL / TLF Series Vertical Multistage Stainless Steel Centrifugal Pumps
The TL / TLF Series Vertical Multistage Centrifugal Pump is designed for high-pressure water transfer, industrial boosting, liquid circulation, and water treatment applications. Its multistage hydraulic design ensures efficient pressure generation with smooth and stable flow performance.
Manufactured in stainless steel construction, the pump offers excellent corrosion resistance and operational durability for continuous-duty applications. The compact vertical design enables easy installation while minimizing floor space requirements in commercial and industrial systems.
Available in multiple flow and pressure configurations, the TL / TLF Series is suitable for water supply systems, industrial liquid conveying, filtration systems, reverse osmosis plants, and high-pressure cleaning applications.
Features
- Vertical multistage design for high-pressure and energy-efficient operation
- Stainless steel construction for corrosion resistance and long service life
- Compact design with stable flow and pressure performance
- Suitable for continuous-duty industrial and commercial applications
- Available in TL and TLF pipeline configurations
- Compatible with water treatment, HVAC, and pressure boosting systems
Applications
- Water supply, filtration, and pressure boosting systems
- High-rise building and main pipeline boosting applications
- Industrial process water, cooling, and air-conditioning systems
- Firefighting and high-pressure washing systems
- Reverse osmosis, ultrafiltration, distillation, and water treatment plants
- Swimming pool and industrial liquid transfer applications
Performance Range
| Rated Flow Range | 1 ~ 200 m³/hr |
| Flow Range | 0.4 ~ 240 m³/hr |
| Maximum Pressure | Up to 30 bar |
| Motor Power Range | 0.37 ~ 110 kW |
| Liquid Temperature | -15°C ~ +120°C |
| Maximum Efficiency | Up to 79% |
| Configurations | TL / TLF Series |
| Connection Type | DIN Flange / Oval Flange / Pipe Thread / Cutting Ferrule Joint |
| Pump Type | Vertical Multistage Stainless Steel Centrifugal Pump |
